Name: Industrial Hybrid Swivel High Current Slip Ring IP51 5RPM
Brand: CENO
Price: 1 USD

Brand Name : CENO

Model Number : BHCN-C-36P-05EG-20F

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T,paypal, Western Union,

Supply Ability : 1000pcy per month

Circuits & Current : 11x250A, 25x10A, 5xGigabit, 20x Fiber optic

Housing material : Stainless steel,Aluminium alloy

Operating speed : 0~5 rpm

Contact material : Precious metal, carbon brush

IP protection grade : IP51

Electrical noise : Max 30mΩ (50rpm)

Contact Now

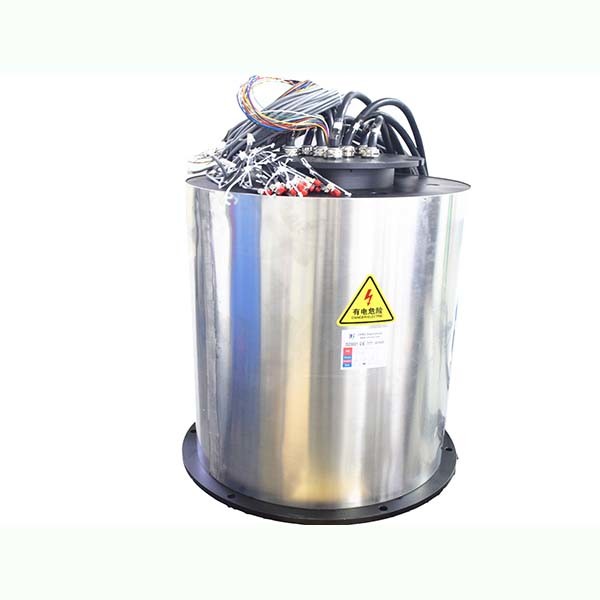

BHCN-C-36P-05EG-20F Hybrid swivel

High current rating slip ring and multichannel fiber optic rotary joint are integrated in this model.It is

designed as free maintenance type.In power channel,current rating up to 250A.Beside power

channel,there are gigabit ethernet channel as well.The crosstalk between the high power channel and

signal channel are totally avoid in slip ring.The fiber optic rotary channel number up to 20.All channels are

single mode and with LC connector on both sides.

Specification

BHCN-C-36P-05EG-20F
Circuits & Current	11x250A, 25x10A, 5xGigabit, 20x Fiber optic
Voltage	0~380VAC
Electrical noise	Max 30mΩ (50rpm)
Dielectric strength	≥1000V@50Hz (power) ≥300V@50Hz (signal)
Insulation resistance	≥500MΩ@300VDC (power) ≥100MΩ@300VDC (signal)
Operating speed	0~5 rpm
Contact material	Precious metal,carbon brush
Housing material	Stainless steel,Aluminium alloy
IP protection grade	IP51

Outline drawing
