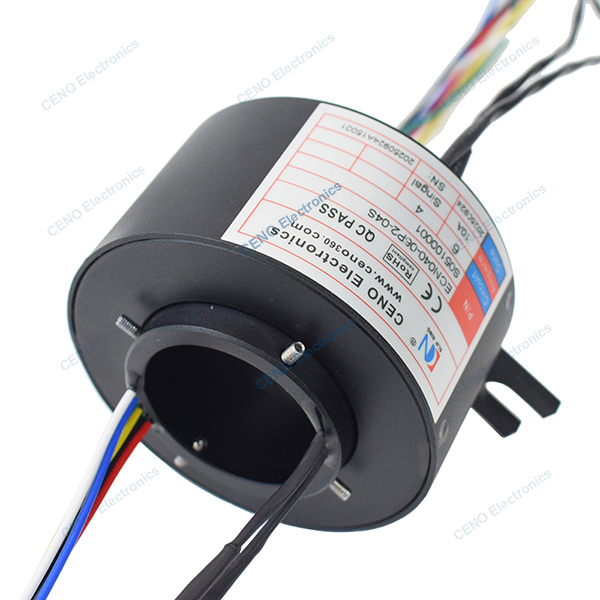

40mm Through Hole Industry Slip Ring combine Electric power with signal and option

  • 1
  • 2
  • 3

Brand Name : CENO

Model Number : ECN040-06P2-04S

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 500pcs per month

Delivery Time : 1 week

Packaging Details : Carton/As request

circuit & current : 6 circuits * 10A; 2 circuits * Signal

Voltage : 0 ~ 220 VAC/VDC

Contact resistance wave : ≤ 70mΩ

Dielectric strength : ≥500VAC@50Hz; ≥300VAC@50Hz

Isolation resistance : ≥500MΩ@500VDC; ≥100MΩ@100VDC

Rotating speed : 0-150 rpm

Inner bore : Ø40mm

Outer diameter : Ø86mm

Housing material : Aluminium Alloy

Contact material : Precious Metal

Lead wire size & length : As customized

IP grade : IP51

Working humidity : 60%RH

Working temperature : -20°C~+60°C

Contact Now

40mm Through Hole Industry Slip Ring combine Electric power with signal and option

ECN040-06P2-04S is CENO industry slip ring combine circuits electric power and signal for industry system. The main function of industrial slip rings is to provide continuous and stable power and signal transmission for rotating bodies. The slip ring ensures unobstructed transmission of power and data signals during equipment rotation by connecting the rotating and stationary parts. For more information about how CENO industry slip ring can fit your application please contact us.

Specification

ECN040-06P2-04S Specification
Current & Circuits 6 circuits * 10A; 2 * Signal
Rating Voltage 0 ~ 220 VAC/VDC
Dielectric strength ≥500VAC@50Hz;≥300VAC@50Hz
Isolation resistance ≥500MΩ@500VDC;≥100MΩ@100VDC
Contact resistance wave ≤ 70mΩ
Working temperature -20°C~+60°C
Working humidity 60 %RH
IP protection grade IP51
Operating speed 0~150rpm
Inner diameter Ø40mm
Outer diameter Ø86mm
Contact material Precious Metal
Housing material Aluminium Alloy
Lead wire size As customized
Lead wire length As customized

Features

  • Through hole 3mm-980mm optional
  • Circuits 1 - 300 circuits are option
  • Stable transmitting, no string code, can be integrate various signal /data
  • Install easy & Free maintenance

Applications

  • Automatic machin
  • Turntable testing machine
  • Packing equipment
  • Filling machinery
  • Medical equipment

Optional

  • Circuit, Voltage, Current
  • Structure & bore size
  • Contact / Housing Materials
  • Protection grade
  • Working speed & temperature

Outline Drawing

40mm Through Hole Industry Slip Ring combine Electric power with signal and option

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

40mm Through Hole Industry Slip Ring combine Electric power with signal and option

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

40mm Through Hole Industry Slip Ring combine Electric power with signal and option

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
